Customized Load Cells
High Temperature Load Cell- FW-HT
FEATURES
FEATURES
- Compression Washer type load cells specially designed for Preload force Measurement of bolts.
- Very low profile for high-capacity Force Sensor.
- Variable Cable length available on request.
- Operating temperature: -10°C~+200°C
- Specially designed Strain gauges with Ni-Cr alloy foil for the Grid and Polyimide resin for the gauge packaging.
- 4 core shield Fluorinated ethylene propylene cables for high temperature and harsh environment
- 17-4 Stainless Steel Construction
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | FW-HT |
|---|---|
| Measuring Ranges | 300 kN |
| Nonlinearity | Lesser than ± 1.5% FS. |
| Sensitivity | 2 mV/V, typical. |
| Hysteresis | lesser than ± 1.5% FS. |
| Repeatability | lesser than ± 1 % FS. |
| Zero balance - Offset | lesser than ± 5.0% FS. |
| Safe Overload | 150% over FS. |
| Creep | lesser than ± 0.1 % FS. |
| Ultimate load limit | 2 times FS |
| Bridge Resistance | 350 Ohms |
| Excitation Voltage | 10V Max |
| Material | Stainless Steel 17.4 PH |
| IP Rating | IP66 |
| Cable | 4core Shield 20Mtr length |
CABLE FEATURES
CABLE FEATURES
Fluorinated ethylene propylene cables for harsh applications
- Fine-wire, silver-plated copper conductor
- PTFE-based core insulation
- Cores twisted together
- Tinned-copper braiding
- Outer sheath: FEP-based, white
- Minimum bending radius Occasional fl exing: 15 x outer diameter Fixed installation: 4 x outer diameter
- Temperature range Fixed installation: -40°C ~ +200°C
Wave Force - WF
FEATURES
FEATURES
- Wave overtopping a sea dike may pose a threat to people and property. Study of the overtopping flow loads, require force sensors that can be used underwater but are sensitive to small load deflections. These load cells can be used for both compression / tension force measurement as per requirements in the use case.
- These load cells are extremely small and lightweight and has Protection Class IP68.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | Wave Force |
|---|---|
| Rated capacity(R.C.) | 2kN, 8kN |
| Rated output(R.O.) | 2mV/V±0.4% |
| Nonlinearity | 0.15% of R.C. |
| Hysteresis | 0.1% of R.C. |
| Repeatability | 0.05% of R.C. |
| Zero balance | ±2% of R.O. |
| Temp. effect on rated output | ±0.01% of LOAD/10°C |
| Temp. effect, on zero balance | 0.05% of R.O./10°C |
| Temperature range, compensated | -10~70°C |
| Temperature range, safe | -10~80°C |
| Terminal resistance input | 350Ω±30Ω |
| Terminal resistance Output | 350Ω±2Ω |
| Insulation resistance bridge/case | 2000MΩ |
| Excitation recommended | 10V (max. excitation 15V) |
| Safe overload | 120% R.C.. |
| Cable Length | Ø5mm 4core, 3m |
WIRING INFORMATION
WIRING INFORMATION
DIMENSION DETAILS
DIMENSION DETAILS
Multi Components Loadcell - MAS-700
FEATURES
FEATURES
This is load cell of simple construction for torque and axial force detection. Provided with a flange for easy installation. Most suitable for use in materials testing machines.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | MAS - 700 |
|---|---|
| Rated Output(R.O.) | FX: 0.2mV/V, FY: 0.2mV/V, MZ: 1.7mV/V |
| Nonlinearity | 0.5% R.O. |
| Hysteresis | 0.5% R.O. |
| Repeatability | 0.1% R.O. |
| Excitation Recommended | 5V DC (max. 10V DC) |
| Terminal resistance | 350 Ohm±3.5 |
| Insulation resistance bridge | 2000 M |
| Temperature effect on rated output | ±0.03% R.O./°C |
| Temperature effect, on zero balance | ±0.03%/°C |
| Safe overload | 120% R.C |
| Cable length | (Ø4mm x 4C x 2m) x 3 |
| Degree of interference | ±3% R.O. |
DIMENSION TABLE
DIMENSION TABLE
| MODEL | Rated Capacity FX | Rated Capacity FY | Rated Capacity MZ |
|---|---|---|---|
| MAS-700 | 150 | 150 | 15 |
WIRING INFORMATION
WIRING INFORMATION
DIMENSION DETAILS
DIMENSION DETAILS
Under Water Tug Loadcell
MINIATURE TENSION LOAD CELLS
MINIATURE TENSION LOAD CELLS
FEATURES
FEATURES
- Compression or Tension Load Cell.
- Protection Class IP67.
- These load cells are extremely small and lightweight.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | FPMT-M |
|---|---|
| Rated capacity(R.C.) | 20, 50, 100, 200kgf |
| Rated output(R.O.) | 0.7~1.2mV/V |
| Nonlinearity | 0.1% of R.O. |
| Hysteresis | 0.1% of R.O. |
| Repeatability | 0.1% of R.O. |
| Zero balance | ±2% of R.O. |
| Temp. effect on rated output | 0.1% of LOAD/10°C |
| Temp. effect, on zero balance | 0.05% of R.O./10°C |
| Temperature range, compensated | -10~60°C |
| Temperature range, safe | -10~80°C |
| Terminal resistance input | 350Ω±30Ω |
| Terminal resistance Output | 350Ω±2Ω |
| Insulation resistance bridge/case | 2000MΩ |
| Excitation recommended | 5V (max. excitation 15V) |
| Safe overload | 120% R.C.. |
| Cable Length | Ø3.4core shield cable, 2m |
WIRING INFORMATION
WIRING INFORMATION
DIMENSION DETAILS
DIMENSION DETAILS
DIMENSION TABLE
DIMENSION TABLE
| Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 20, 50, 100, 200 Kg | 27 | 21 | 11 | M6x1 | 22 | M3x0.5 DP6 |
Download
Force Column Internal Radius Thread - FCRT
FEATURES
FEATURES
FCRT Load cells are used for static and dynamic measurements of forces and weights. They can be used for almost all applications in industries. These may be for example:
Container, hopper or platform scales
Rollway, belt or crane scales
Filling/packing plants, proportioning and mixing
Filling level and completeness inspection, equipment for monitoring pressing and clamping procedures, dynamic scales
All applications can be located in areas with mandatory calibration or in hazardous areas.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | FCRT |
|---|---|
| Rated capacity(R.C.) | 25tf |
| Rated output(R.O.) | 1mV/V |
| Nonlinearity | Within 0.5% of R.O. |
| Hysteresis | Within 0.5% of R.O. |
| Repeatability | 0.15% of R.O. |
| Creep | 0.05% of R.O |
| Zero balance | ±1% of R.O. |
| Excitation recommended | 10V (max. excitation 15V) |
| Terminal resistance input , output | 350Ω±1% |
| Insulation resistance bridge | 2000MΩ |
| Temperature range, compensated | -10~60°C |
| Temperature range, safe | -20~80°C |
| Temp. effect on rated output | ±0.01% of LOAD/10°C |
| Temp. effect, on zero balance | ±0.02% of R.O./10°C |
| Safe overload | 120% R.C.. |
| Cable length | Ø5mm 4core, 2m |
WIRING INFORMATION
WIRING INFORMATION
DIMENSION DETAILS
DIMENSION DETAILS
Force Column Dual Radius - FCDR
FEATURES
FEATURES
FCDR Load cells are used for static and dynamic measurements of forces and weights. They can be used for almost all applications in industries. These may be for example:
Container, hopper or platform scales
Rollway, belt or crane scales
Filling/packing plants, proportioning and mixing
Filling level and completeness inspection, equipment for monitoring pressing and clamping procedures, dynamic scales
All applications can be located in areas with mandatory calibration or in hazardous areas.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | FCDR |
|---|---|
| Rated capacity(R.C.) | 25tf |
| Rated output(R.O.) | 1mV/V |
| Nonlinearity | Within 0.5% of R.O. |
| Hysteresis | Within 0.5% of R.O. |
| Repeatability | 0.15% of R.O. |
| Creep | 0.05% of R.O |
| Zero balance | ±1% of R.O. |
| Excitation recommended | 10V (max. excitation 15V) |
| Terminal resistance input , output | 350Ω±1% |
| Insulation resistance bridge | 2000MΩ |
| Temperature range, compensated | -10~60°C |
| Temperature range, safe | -20~80°C |
| Temp. effect on rated output | ±0.01% of LOAD/10°C |
| Temp. effect, on zero balance | ±0.02% of R.O./10°C |
| Safe overload | 120% R.C.. |
| Cable length | Ø5mm 4core, 2m |
WIRING INFORMATION
WIRING INFORMATION
DIMENSION DETAILS
DIMENSION DETAILS
Crane Loadcell with Large Indicator - LLC
FEATURES
FEATURES
Crane Loadcell is ideal for crane, hoist & lifting applications Suitable for high capacity under rugged Applications; with Large display option; Ultra Precision Strain Gage based compact and rugged.
SPECIAL FEATURES
- Any capacity and any make crane loadcell can be configured with this Indicator.
- Configuration & Calibration can be done by mobile App
- Easy wireless configuration.
APPLICATIONS
- Under hook crane weighing
- Crane load testing
- Beam proof testing
- Water bag calibration
- Cable tension measurement.
CRANE LOADCELL
- 3 to 50 TF Capacities available.
- Suitable mounting for crane applications

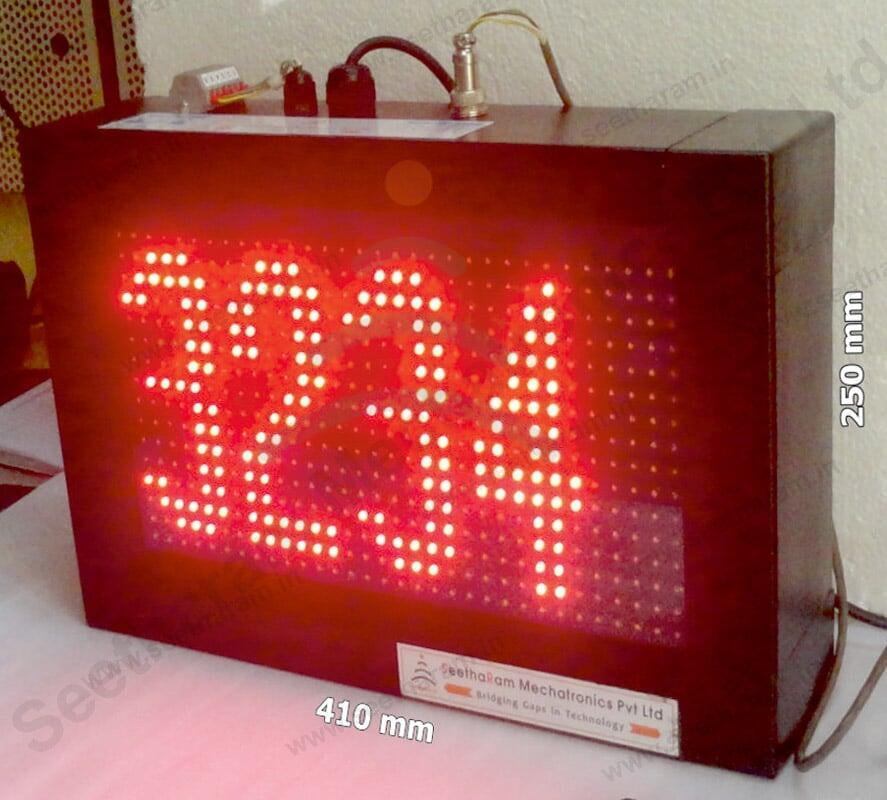

LARGE DISPLAY
- LED Dot Matrix Indicator
- Supply 230V AC
- 250 x 410 x 90mm
- 2 Relay output
- Optional: Analog Output.
DIMENSION DETAILS
DIMENSION DETAILS
SCREENS
SCREENS
Rope Tension Loadcell with Large Indicator - RTLC
FEATURES
FEATURES
Crane Loadcell is ideal for crane, hoist & lifting applications Suitable for high capacity under rugged applications with Large display option; Ultra Precision Strain Gage based compact and rugged.
SPECIAL FEATURES
- Any capacity and any make crane loadcell can be configured with this Indicator.
- Configuration & Calibration can be done by mobile App
- Easy wireless configuration.
APPLICATIONS
- Under hook crane weighing
- Crane load testing
- Beam proof testing
- Water bag calibration
- Cable tension measurement.
CRANE LOADCELL
- 15, 20, 30, 40, 50 TF Capacities available.
- Suitable mounting for crane applications
LARGE DISPLAY
- LED Dot Matrix Indicator
- Power supply 110/230V AC
- 250 x 410 x 90mm
- 2 Relay output
- Optional: Analog Output.
WIRING INFORMATION
WIRING INFORMATION
DIMENSION DETAILS
DIMENSION DETAILS
