Automotive Load Cells

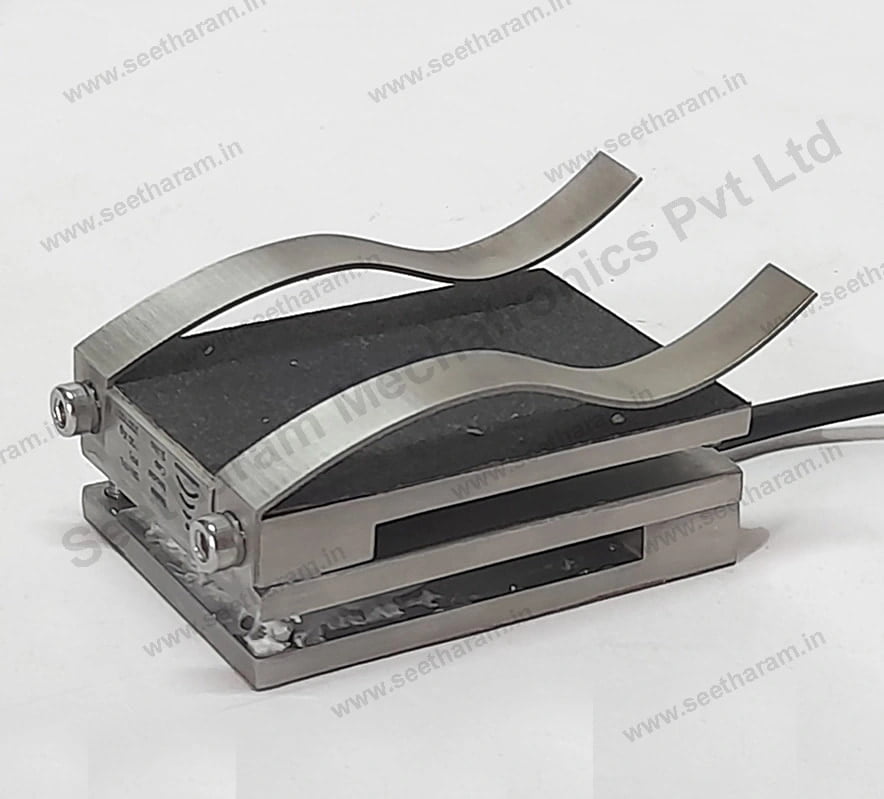

Pedal Force Sensor - PFS
FEATURES
FEATURES
- Our pedal force sensors are specially designed for the measurement of foot forces on brake pedals. The pedal force sensor is mounted directly on the brake pedal for the measurement. An overload safety device protects the pedal force sensor against mechanical destruction.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | Pedal Force Sensor |
|---|---|
| Nominal load Range | 1000N / 1500N |
| Overload limit | 1000N / 1800N |
| Accuracy | ±0.5% F.S. |
| Degree of protection | IP65 |
| Operating temperature range | -10°C to +50°C |
| Cable | 4 x 0.14 high -flexibility PVC, length 2m or spiral cable, length 0.5 to 4m |
| Options | Analog Output - 0~5V dc, 4~20mA |
WIRING INFORMATION
WIRING INFORMATION
Hand Force Sensor - HFS
FEATURES
FEATURES
- Our pedal force sensors are specially designed for the measurement of foot forces on brake pedals. The pedal force sensor is mounted directly on the brake pedal for the measurement. An overload safety device protects the pedal force sensor against mechanical destruction.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | Hand Force Sensor |
|---|---|
| Nominal load | 0 - 500 N |
| Accuracy class | 0.5 % f.s. |
| Protection | ±IP 65 |
| Dimensions | W 26 x L 100 x H 23 mm |
| Material | Aluminium |
| Sensitivity | 1mV/V |
| Sensor Excitation | lesser than + 10 V |
| Cable length | 1.5m |
| Cable type | FDCY 4 x 0.14 mm² |
DIMENSION DETAILS
DIMENSION DETAILS
WIRING INFORMATION
WIRING INFORMATION
Gear Shifting - GS 500N
GEAR SHIFTING LOADCELL
GEAR SHIFTING LOADCELL
FEATURES
FEATURES
This can measure X and Y force of gear shifting lever. The gear shift load cell is a quality tool to measure effort to shift gears in automotive quality testing. An ergonomically designed gear knob senses the force from a human hand or a mechanical actuator. The gear shift load cell is supplied calibrated and ready to use.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | GS 500N |
|---|---|
| Rated capacity(R.C.) | 500 N |
| Rated output(R.O.) | 1mV/V±1% |
| Nonlinearity | 1% R.O. |
| Hysteresis | 1% R.O. |
| Resistance | 350 Ohm±1% |
| safe overload | 120% R.C. |
| Maximum Excitation | Max. excitation 15V |
DIMENSION DETAILS
DIMENSION DETAILS
WIRING INFORMATION
WIRING INFORMATION
