Miniature Load Cells

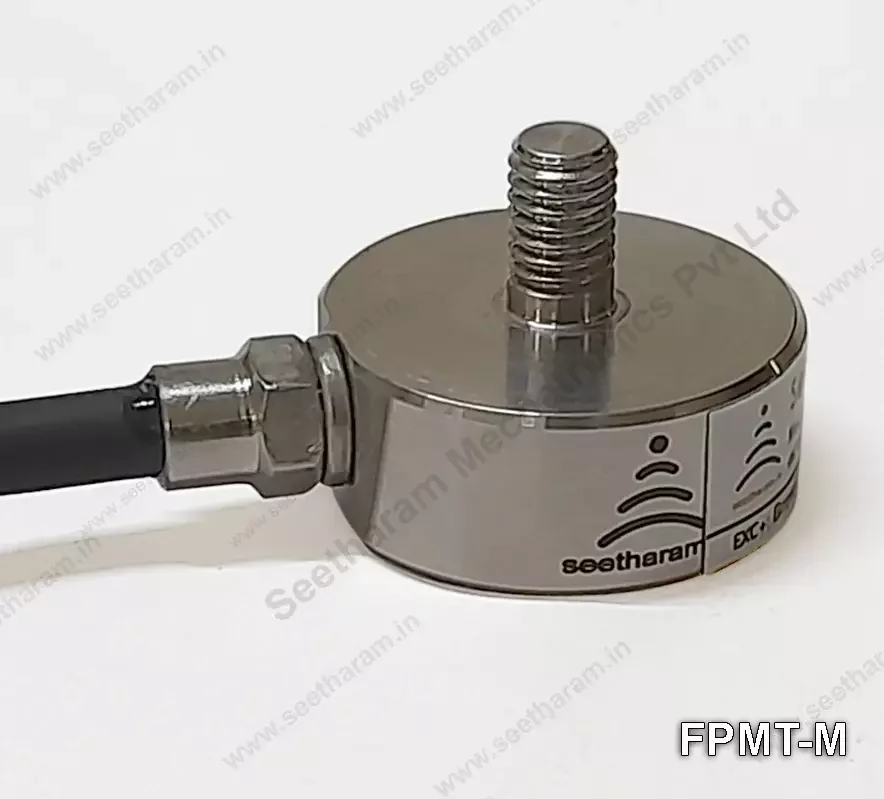

Force Pancake Male Thread Miniature - FPMT(M)
MINIATURE TENSION LOAD CELLS
MINIATURE TENSION LOAD CELLS
FEATURES
FEATURES
- Compression or Tension Load Cell.
- Protection Class IP67.
- These load cells are extremely small and lightweight.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | FPMT-M |
|---|---|
| Rated capacity(R.C.) | 20, 50, 100, 200kgf |
| Rated output(R.O.) | 0.7~1.2mV/V |
| Nonlinearity | 0.1% of R.O. |
| Hysteresis | 0.1% of R.O. |
| Repeatability | 0.1% of R.O. |
| Zero balance | ±2% of R.O. |
| Temp. effect on rated output | 0.1% of LOAD/10°C |
| Temp. effect, on zero balance | 0.05% of R.O./10°C |
| Temperature range, compensated | -10~60°C |
| Temperature range, safe | -10~80°C |
| Terminal resistance input | 350Ω±30Ω |
| Terminal resistance Output | 350Ω±2Ω |
| Insulation resistance bridge/case | 2000MΩ |
| Excitation recommended | 5V (max. excitation 15V) |
| Safe overload | 120% R.C.. |
| Cable Length | Ø3.4core shield cable, 3m |
WIRING INFORMATION
WIRING INFORMATION
DIMENSION DETAILS
DIMENSION DETAILS
Force Pancake Male Thread - FPMT
PANCAKE TENSION LOAD CELL
PANCAKE TENSION LOAD CELL
FEATURES
FEATURES
- Compression or Tension Load Cell.
- These load cells are extremely small and lightweight. Protection Class IP67.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | FPMT |
|---|---|
| Rated capacity(R.C.) | 20, 50, 100, 200, 500kgf, 1tf, 2tf |
| Rated output(R.O.) | 2mV/V±0.4% |
| Nonlinearity | 0.15% of R.C. |
| Hysteresis | 0.1% of R.C. |
| Repeatability | 0.05% of R.C. |
| Zero balance | ±2% of R.O. |
| Temp. effect on rated output | ±0.01% of LOAD/10°C |
| Temp. effect, on zero balance | 0.05% of R.O./10°C |
| Temperature range, compensated | -10~70°C |
| Temperature range, safe | -10~80°C |
| Terminal resistance input | 350Ω±30Ω |
| Terminal resistance Output | 350Ω±2Ω |
| Insulation resistance bridge/case | 2000MΩ |
| Excitation recommended | 10V (max. excitation 15V) |
| Safe overload | 120% R.C.. |
| Cable Length | Ø5mm 4core, 3m |
WIRING INFORMATION
WIRING INFORMATION
DIMENSION DETAILS
DIMENSION DETAILS
Force Sub Miniature Compression - FSMC
SUB MINIATURE COMPRESSION LOAD CELL
SUB MINIATURE COMPRESSION LOAD CELL
DESCRIPTION
DESCRIPTION
Model FSMC - Subminiature load cell is a low profile force transducer for applications with minimal space and high capacity requirements. This transducer utilizes foil strain gages to measure compression loads. The top of the load cell is the area where the force is applied and the base ring of the load cell must be placed on a hard, machine-ground flat surface to obtain optimum accuracy.
FEATURES
FEATURES
- 3000Kg ~ 5000Kg range
- ±0.7 % accuracy
- Stainless steel
- Column construction
- mV/V output
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | FSMC |
|---|---|
| Rated capacity(R.C.) | 3000Kg ~ 5000Kg |
| Rated output(R.O.) | 1.5 mV/V |
| Accuracy | ±0.7 % |
| Bridge Resistance | 350Ω±1% |
| Zero balance | 1 % F.S |
| Excitation recommended | 5V dc |
| Insulation resistance bridge | 5000 mOhm @ 50 Vdc |
| Temp. effect on rated output | 0.01 % F.S |
| Temp. effect, on zero balance | 0.01 % F.S |
| Safe overload | 350Ω±50Ω |
WIRING INFORMATION
WIRING INFORMATION
DIMENSION DETAILS
DIMENSION DETAILS
DIMENSION TABLE
DIMENSION TABLE
Force Button Compression - FBC1 & 2
MINIATURE COMPRESSION LOAD CELL
MINIATURE COMPRESSION LOAD CELL
FEATURES
FEATURES
- Optimum suitability for weight distribution analysis.
- Super compact and light weight
- Competitive price. Stainless steel construction.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | FBC1 & 2 |
|---|---|
| Rated capacity(R.C.) | 1, 2, 5, 10, 20, 50, 100, 200, 500kgf, 1, 2, 3tf |
| Rated output(R.O.) | 0.7mV/V to 1.2mV/V |
| Nonlinearity | 1.0% R.O. |
| Hysteresis | 1.0% R.O. |
| Repeatability | 1.0% R.O. |
| Zero balance | ±5% of R.O. |
| Terminal resistance input | 350Ω ±10% |
| Terminal resistance output | 350Ω ±5% |
| Temperature range, allowable | -20 to +70°C |
| Excitation recommended | 5V DC (max. excitation 15V) |
| Safe overload | 150% R.C. |
| Cable length | Ø3 4core cable, 3m |
WIRING INFORMATION
WIRING INFORMATION
DIMENSION TABLE
DIMENSION TABLE
| Capacity | A | B | C | ØD | Weight (kg) |
|---|---|---|---|---|---|
| 1, 2, 5kgf | 16 | 12 | 2 | 2.5 | 0.2 |
| 10, 20, 50, 100, 200kgf | 20 | 11.5 | 2 | 2.5 | 0.2 |
| 300, 500,kgf, 1, 2, 3tf | 20 | 14 | 0.7 | 4 | 0.3 |
| Capacity | A | B | C | ØD | Weight (kg) |
|---|---|---|---|---|---|
| 1, 2, 5kgf | 21 | 12 | 17 | 2.5 | 0.3 |
| 10, 20, 50, 100, 200kgf | 26 | 12 | 21 | 2.5 | 0.3 |
| 300, 500,kgf, 1, 2, 3tf | 26 | 14 | 21 | 4 | 0.3 |
| 3tf | 26 | 14 | 21 | 8 | 0.3 |
