IOT Humidity Sensor
Seetharam is one of the best IOT humidity and Temperature sensor manufacturing company in India. We deliver sensors on the market to offer the best sensor solution at the best price. We offers powerful & leading IOT sensors for temperature, humidity, acceleration, proximity in India.
We can customize our sensors to your needs, integrate your application easily with leading cloud service providers, and provide a wide array of development services to bring your design to market.
Vibes RhT - with Display
Vibes RhT - without Display
Vibes RhT - without Display
Meya Ambient
Meya Ambient
Vibes RhT
Vibes - RhT is meant for industry-proven reliable measurement of ambient room conditions. Humidity and temperature parameters are the primary parameters to be measured constantly to ensure healthy environs. The probe uses Capacitive humidity sensor with a bandgap temperature sensor and covers a humidity measurement range of 0 to 100% RH & a Temperature measurement range of -40 °C to 125 °C with a typical accuracy of ±2 % RH and ± 0.2 °C.
The device can be used in Ware House Monitoring, Food Grain Monitoring, Green House Monitoring, Automation in Food, Drug & Pharma Industries, Healthcare and Entertainment Sector, Poultry Farming, Laboratory Plant, Chemical Plants, Engineering industries and commercial applications. The device is compatible to SCADA, Industry 4.0 standards and IoT Scenario.

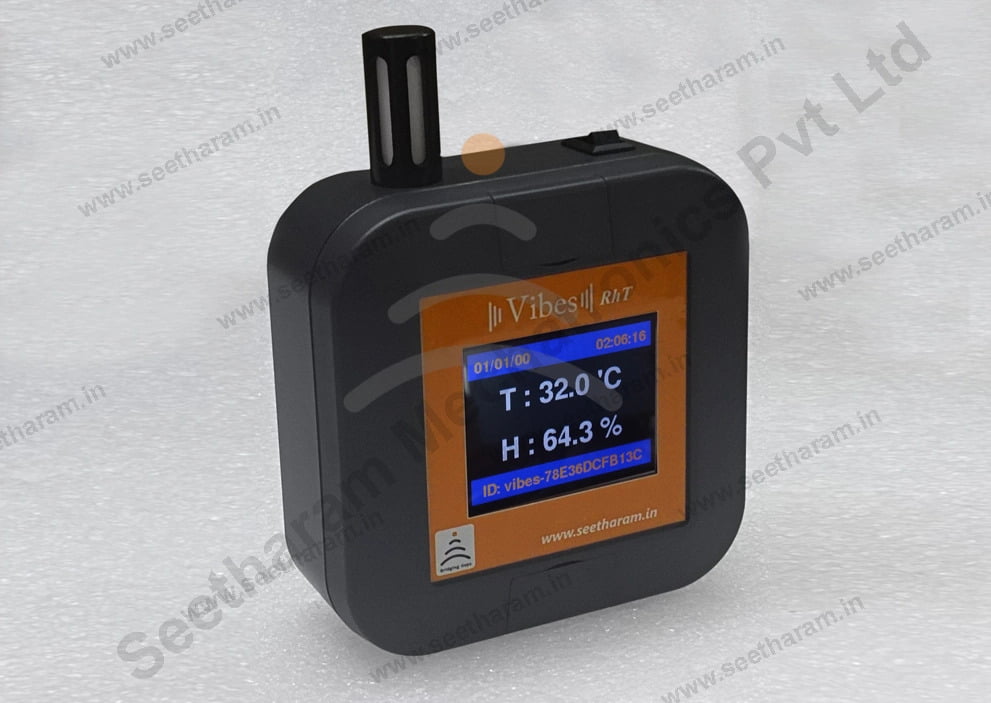

Vibes RhT - with Display
Technical Specification
| Vibes - RhT | |
|---|---|
| Humidity | 0% ~ 100% Rh |
| Temperature | -40°C ~ 125°C |
| Accuracy | ±2% Rh, ±0.2%°C |
| Response Time | t63% 8 Sec |
| Power Supply | USB Powered (Type - C) |
| Battery (Optional) | 3.7V, 1150 mAH Lithium Ion Rechargeable Battery |
| Processor | 32-bit 144 MHZ ARM Cortex M4F processor |
Vibes RhT - without Display
Technical Specification
| Vibes - RhT | |
|---|---|
| Connectivity Options | Wired - RS485, Wi-Fi - HTTP / MQTT / any other |
| Antenna | Internal antenna with 2.5 DBI max gain |
| Storage temperature | -40°C ~ +85°C |
| Ingress Protection | IP 54 |
| Housing | |
| Option1: High grade Aluminium 6xxx grade with Anodised color finish | |
| Option 2: ABS Plastics UL94-HB |
Applications:
These device can be used in Ware House Monitoring, Food Grain Monitoring, Green House Monitoring, Automation in Food, Drug & Pharma Industries, Poultry Farming, Laboratory Plant, Chemical Plants, Engineering industries, HVAC, Civil Engineering, Weather Station and commercial applications.
Use Cases:
- Data Logger
- IoT Device
- Sensors for SCADA
Firmware & Communication Features:
- Transmit the value either wired and wirelessly through RS485 and HTTP/MQTT endpoint.
- Export the sensor data logs by clicking the Export Data button in the application and store it locally on the device.
- Firmware can be updated for HTTP/MQTT Endpoints on Azure /AWS or as required by OEM.
- Firmware can be also modified remotely via FOTA.
- Configurable through App to wireless network of your choice assigning network credentials requiring both username and password.
- Configure Endpoint Server Credentials through App
- Instantaneous values and Device performance can be monitored by App by force logging to the device.
Vibes Configurator App
Data View
If Used on Wi-Fi
If Used on RS-485
Data Logger
Meya Ambient
The Meya Ambient is a Colour TFT indicator cum IoT enable device with built in Multiple ambient sensors. Each sensor has industry grade precision for continuous long time operation.
Features
- Ambient Sensors - Temperature, Barometric Pressure,RH, Humidity, eCO2 Emission.
- 260 to 1260 hPa absolute range for Barometric pressure
- Ultra-compact piezoresistive absolute pressure sensor which functions as a barometer
- Digital multi-pixel gas sensor for air quality measurement
- eCO2 range measurement 400 ppm to 60000 ppm
- Humidity & Temperature Compensation
- RTC for Time Stamp.
- Optional Battery or Mains Powered (With Adaptor)
- Colour TFT for clear and pleasing visibility suitable for both Indoor/Outdoor viewing
- Data Sharing over Wi-Fi
Technical Specification
| Vibes - RhT | |
|---|---|
| Connectivity Options | Wired - RS485, Wi-Fi - HTTP / MQTT / any other |
| Antenna | Internal antenna with 2.5 DBI max gain |
| Storage temperature | -40°C ~ +85°C |
| Ingress Protection | IP 54 |
| Housing | |
| Option1: High grade Aluminium 6xxx grade with Anodised color finish | |
| Option 2: ABS Plastics UL94-HB |
| Parameter | Condition | Value | UNIT |
|---|---|---|---|
| Accuracy Tolerance | Typ. | ±2.0 | %RH |

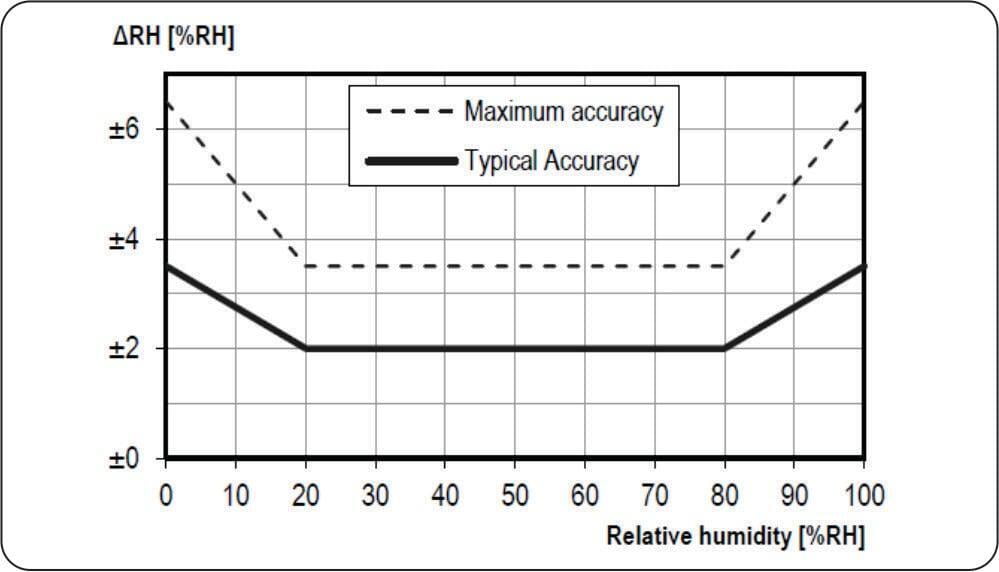

| Max. | Below Graph | %RH | |
| Repeatability | - | 0.1 | %RH |
| Resolution | - | 0.01 | %RH |
| Hysteresis | - | ±1 | %RH |
| Specified Range | extended | 0 to 100 | %RH |
| Response time | t63% | 8 | S |
| Long-term drift | Typ. | <0.25 | %RH/y |
| Parameter | Condition | Value | UNIT |
|---|---|---|---|
| Accuracy Tolerance | Typ. | ±2.0 | °C |
| Max. | Below Graph | °C | |
| Repeatability | - | 0.1 | °C |
| Resolution | - | 0.01 | °C |
| Specified Range | - | -40 to +125 | °C |
| Response time | t63% | <5 to 30 | s |
| Long-term drift | Typ. | <0.02 | °C/y |
